Cube Beamsplitter, Polarizing, 12.7 mm, 532 nm Laser Line

Laser Line Polarizing Cube Beamsplitters

Cube Beamsplitter, Polarizing, 12.7 mm, 532 nm Laser Line

Model: 05BC16PC.3

$317

In Stock

Compare

Product Series Overview

Laser Line Polarizing Cube Beamsplitters

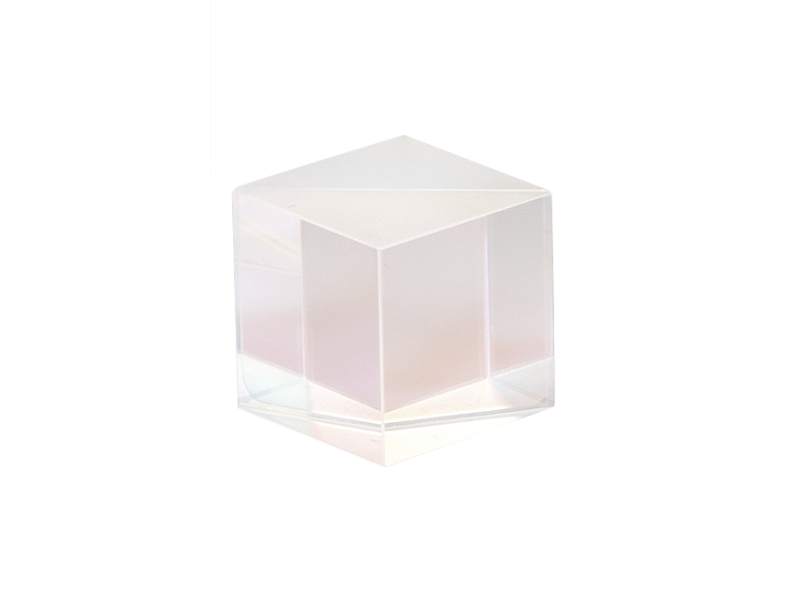

The 05BC16PC.3 Laser Line Polarizing Cube Beamsplitter provides efficient narrowband polarization for higher power lasers. This polarizer consists of a pair of precision 1/2 inch (12.7 mm) right-angle prisms carefully cemented together to minimize wavefront distortion. The hypotenuse of one of the prisms is coated with a multilayer dielectric polarizing beamsplitter coating optimized for the 532 nm laser line. The four faces are antireflection coated with a multilayer dielectric coating to minimize surface reflection losses. An unpolarized beam is split into two orthogonal, linearly polarized components. P-polarized light is transmitted, while s-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 1000:1. This cube is recommended for use in pulsed laser systems and for purifying polarization in multimode, high-power lasers.

Specifications

Technical Specs

Wavelength Range
532 nm
Size
12.7 x 12.7 x 12.7 mm
Shape
Cube
Material
Grade A N-BK7
Coating Type
Laser line polarizing
Coating Code
PC.3
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±3°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_s >99.8%
Reflected Beam Deviation
90° ±5 arc min

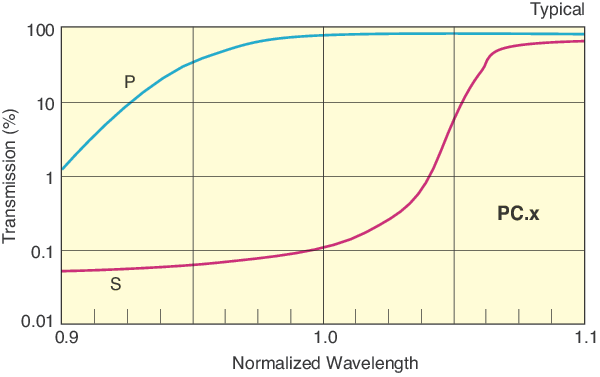

Transmission
T_p >95%
Transmitted Beam Deviation
≤5 arc min

Extinction Ratio
T_p/T_s >1,000:1
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
2000 W/cm² CW, 1 J/cm² with a 10 nsec pulse @ 532 nm, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Wavelength Range
532 nm
Size
12.7 x 12.7 x 12.7 mm
Shape
Cube
Material
Grade A N-BK7
Coating Type
Laser line polarizing
Coating Code
PC.3
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±3°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_s >99.8%
Reflected Beam Deviation
90° ±5 arc min
Transmission
T_p >95%
Transmitted Beam Deviation
≤5 arc min

Extinction Ratio
T_p/T_s >1,000:1
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
2000 W/cm² CW, 1 J/cm² with a 10 nsec pulse @ 532 nm, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Resources & Downloads

3D Product Models

Download CAD Files

Other

05BC16PC.3 RoHS Certificate(264.3 kB, PDF)
05BC16PC.3_ROHS2-2021.pdf(279.9 kB, PDF)

Related Products

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		05BC16NP.3Cube Beamsplitter, Non-Polarizing, 12.7 mm, 532 nm Laser Line	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$410

Similar

Description	Compatibility	Avail.	Price
10BC16PC.3Cube Beamsplitter, Polarizing, 25.4 mm, 532 nm Laser Line	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$442
05FC16PB.3Cube Beamsplitter, Polarizing, 12.7 mm, 420-680 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$332

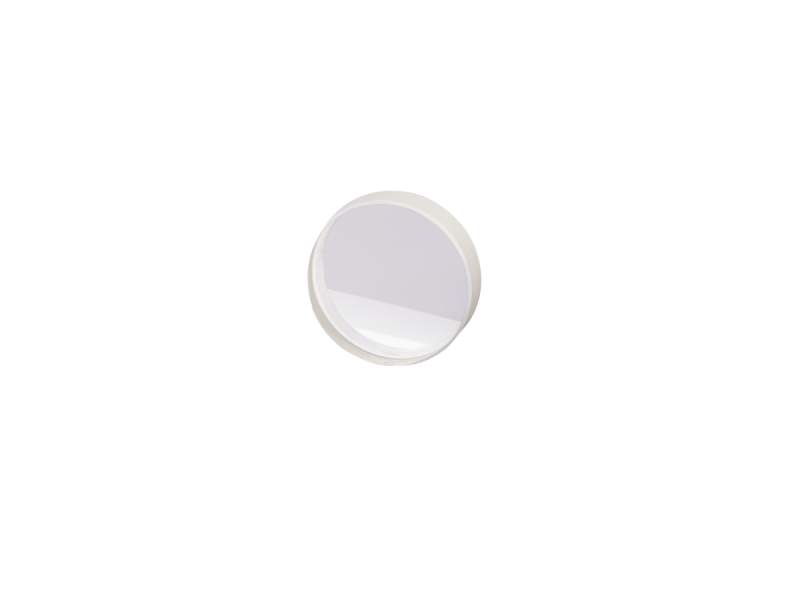

10B20BS.1Broadband Dielectric Beamsplitter, 25.4 mm, N-BK7, 480-700 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$163

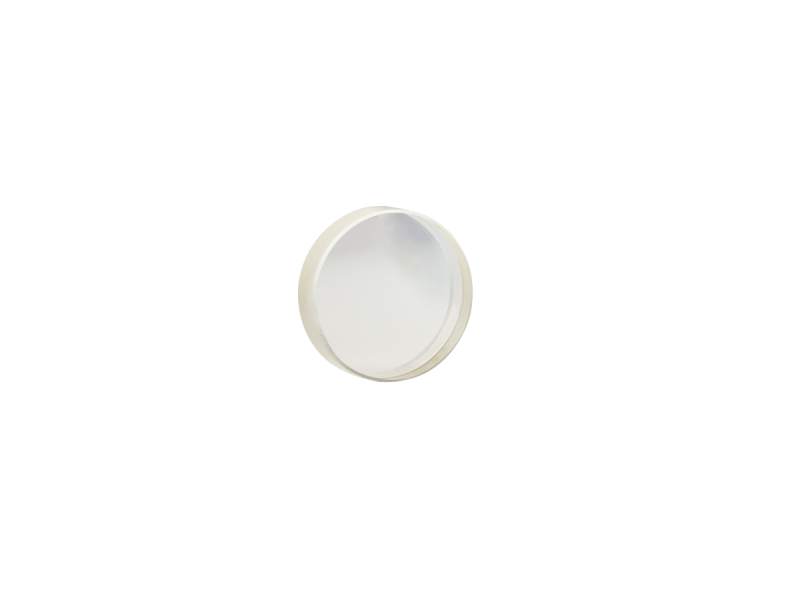

10B20NC.1Optical Beam Sampler, Broadband, N-BK7, 25.4 mm, λ/10, 440-700 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$115
