ISO-MF conical adapters use a high conductance conical profile to adapt ISO-MF vacuum flanges to smaller ISO-KF flanges.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

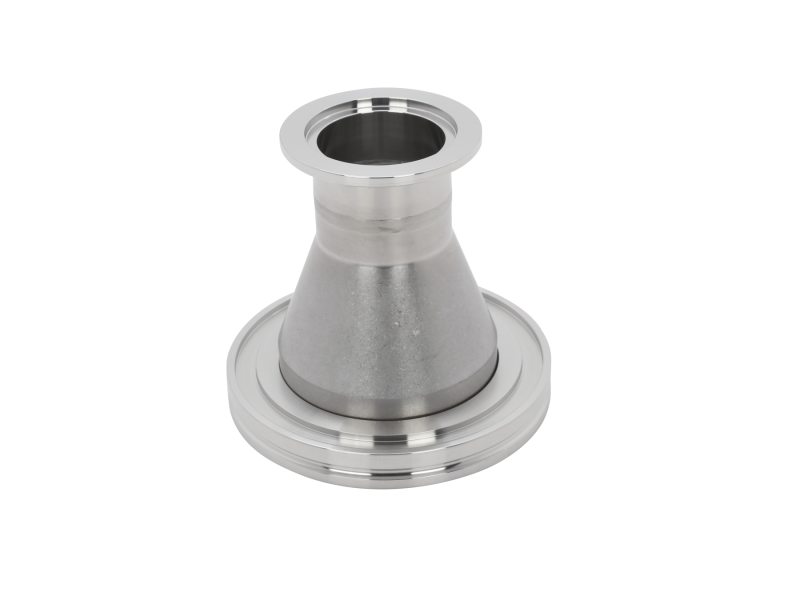

100765006 ISO-MF Flange Adapter, NW63 ISO-MF to NW40 ISO-KF, Conical Profile |
In Stock
|
$266.23 |
|
|||
|

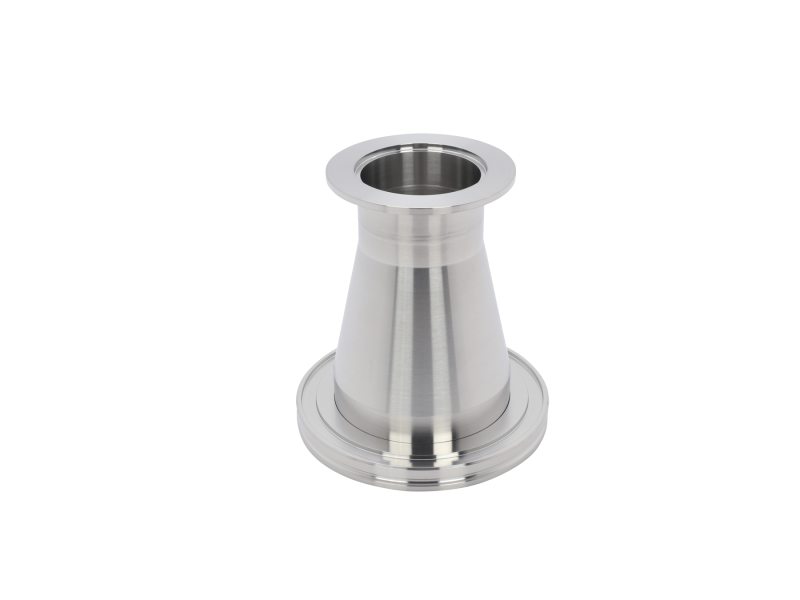

100765008 ISO-MF Flange Adapter, NW80 ISO-MF to NW50 ISO-KF, Conical Profile |
In Stock
|
$272.58 |
|
|||
|
100765016 ISO-MF Flange Adapter, NW80 ISO-MF to NW40 ISO-KF, Conical Profile |
In Stock
|
$256.41 |
|
|||
|
100765017 ISO-MF Flange Adapter, NW63 ISO-MF to NW50 ISO-KF, Conical Profile |
In Stock
|
$233.31 |
|
|||
|

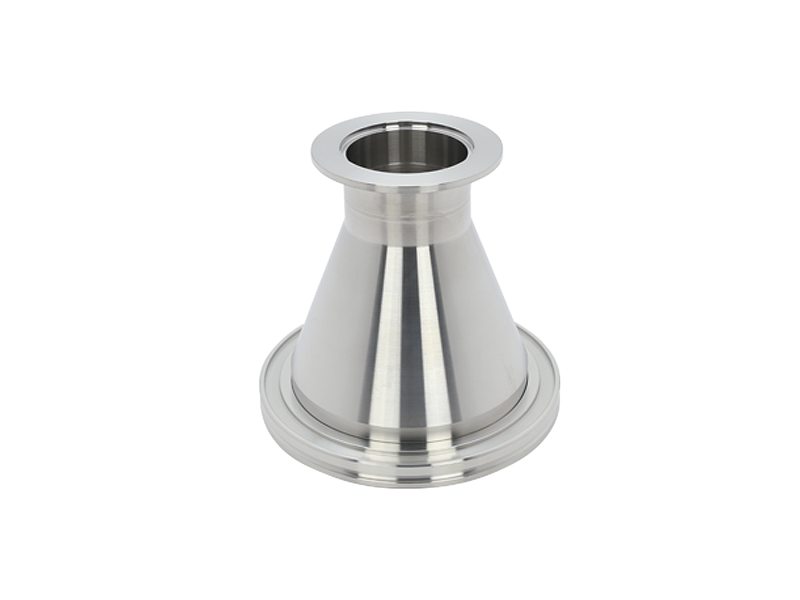

100765018 ISO-MF Flange Adapter, NW100 ISO-MF to NW50 ISO-KF, Conical Profile |
In Stock
|
$370.76 |
|
| Models |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Component Type | Flange Adapter | Flange Adapter | Flange Adapter | Flange Adapter | Flange Adapter | |
| Flange Type | ISO-MF | ISO-MF | ISO-MF | ISO-MF | ISO-MF | |
| Flange Size | NW63 | NW80 | NW80 | NW63 | NW100 | |
| Flange Size 2 | NW40 ISO-KF | NW50 ISO-KF | NW40 ISO-KF | NW50 ISO-KF | NW50 ISO-KF | |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | |
| Length | 3.39 in. (86 mm) | 4.64 in. (118 mm) | 4.64 in. (118 mm) | 3.39 in. (86 mm) | 4.64 in. (118 mm) | |
| A | 86 mm | 118 mm | 118 mm | 86 mm | 118 mm | |
| B | 60 mm | 73 mm | 73 mm | 60 mm | 97 mm | |
| C | 35 mm | 47 mm | 35 mm | 47 mm | 47 mm |
ISO-MF vacuum flange components are a vacuum flanging system for 63 mm to 1000 mm fittings. The dimension criteria are based on requirements established by the International Standards Organization (ISO). There are two flange styles: ISO-MF (multi-fastener flange) and ISO-BF (bolted flange).
There are several advantages in the use of ISO-MF components. The seal is on a symmetrical centering ring that interfaces with two identical flanges allowing for rotation. In addition, ISO-MF flanges are more compact than ASA flanges, which were designed for pressure and are unnecessarily massive for vacuum use.
ISO-MF vacuum flanges and components are made of type 304 stainless steel. Centering ring and seal assemblies are available with an aluminum centering ring and spacer ring, or with a stainless centering ring and an aluminum spacer ring. Rotatable bolt rings and clamps are made of aluminum alloy. Retaining rings are made of steel. Flange seal surfaces are carefully machined and inspected for defects.
