Infrared Fibers

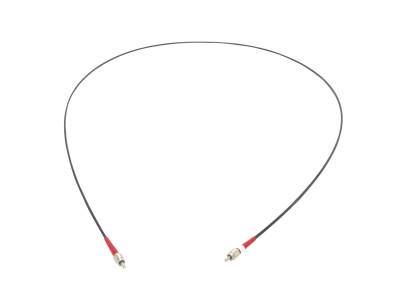

These infrared (IR) fibers are convenient for guiding light from a sample to a monochromator or photodetector or from a monochromator to a sample. Two specific fiber types are offered, differing in core material and structure and jacket material to provide optimum IR light transmission performance within their respective wavelength regions.

Guide IR light from a sample to monochromator
Excellent transmittance over 2 to 6 µm and 4 to 18 µm regions
Custom lengths available

See All Features

Features

Excellent transmittance over the 2 to 6 µm and 4 to 18 µm infrared regions

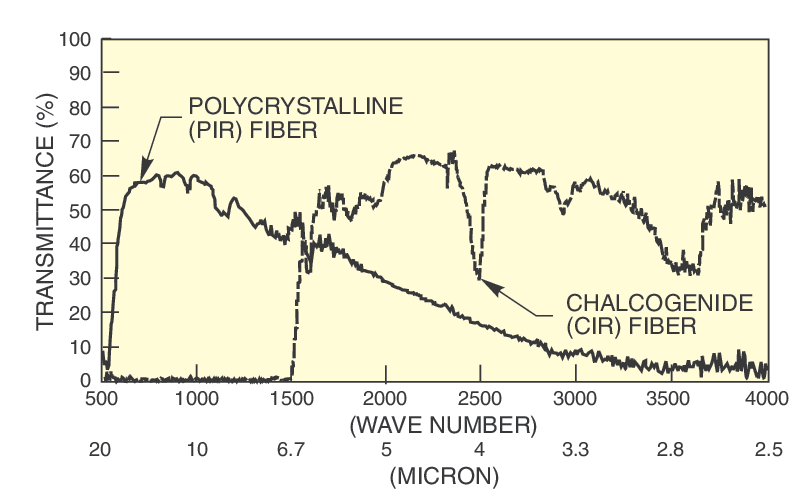

These fibers are made of two different core materials. Chalcogenide (CIR) fibers exhibit high transmittance from 2 to 6 µm, and are characterized by low optical loss and high flexibility. Polycrystalline (PIR) fibers exhibit high transmittance from 4 to 18 µm. The internal core and cladding are designed to prevent light form leaking through the fiber, and has a high enough damage tolerance to withstand damage from sources as intense as a continuous-wave CO₂ laser. Chalcogenide IR fibers have a max operating temperature of 96˚C and Polycrystalline IR fibers have a max operating temperature of 120˚C.

Custom lengths available

As standard parts, these light guides are available in 1 m and 1.5 m lengths. Custom lengths can be supplied upon request. Contact Newport Sales for more information.

Accessories

Fiber Holders and Mounts

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		70456Optical Fiber Holder, Single SMA, 1.5 Inch Series Female Flange	UNIVERSAL			$685
		77848Optical Fiber Holder, Single SMA, Optical Post Mounted	UNIVERSAL			$105

Monochromator Fiber Adapters

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77860Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Set Screws	UNIVERSAL			$170
		77863Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Quick Disconnect	UNIVERSAL			$520

Ferrules and Ferrule Converters

Description	Compatibility	Price
77640Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$25
77641Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$20
77642Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$30
77663Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$25
77665Fiber Bundle Ferrule, 11mm, 0.20 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$30
77666Fiber Bundle Ferrule, 11mm, 0.25 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$60
77667Fiber Bundle Ferrule, 11mm, 0.31 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$35
77670Ferrule Converter, SMA Termination to 11mm Standard Ferrule	UNIVERSAL	$55
77675Ferrule Converter, ST Termination to 11mm Standard Ferrule	UNIVERSAL	$160
