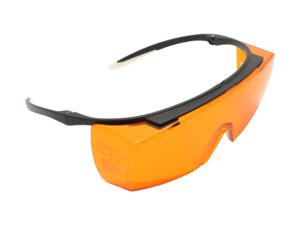

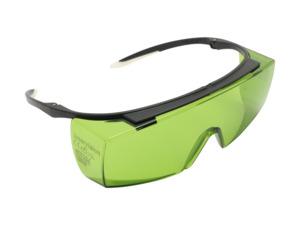

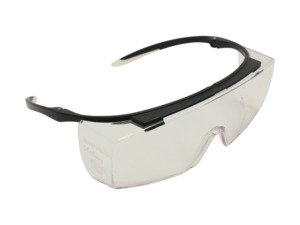

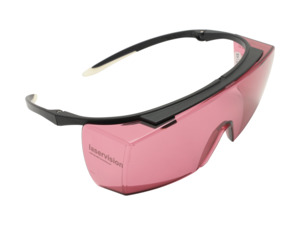

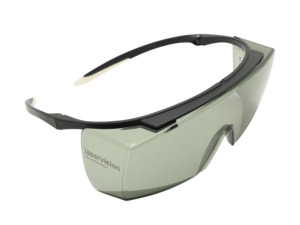

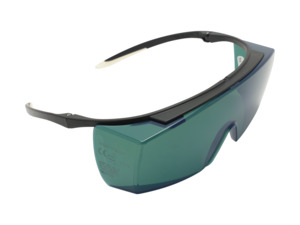

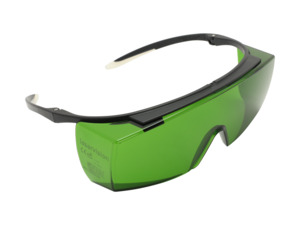

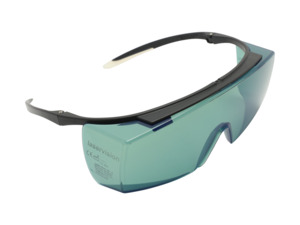

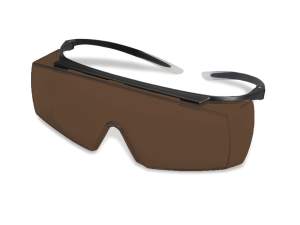

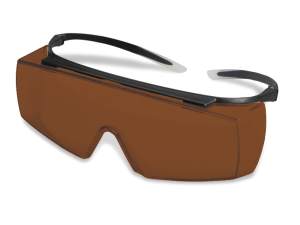

F22 OTG Frame Laser Safety Glasses

The F22 frame laser safety glasses from Laservision offer an optimal field of view and comfortable soft grip tips for a safe, stable and pressure-free fit.

Innovative design with optimal field of view
Comfortable soft grip tips for stable and pressure-free fit
Fold with flex side arm grips for a custom temple fit
Fits over prescription eyewear
Meets ANSI Z136.1 and EN207

See All Features

Specifications

Models								LV-F22.P1L15			LV-F22.P1P10	LV-F29.P1L12
Frame Style	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses	F22 OTG Glasses
Visible Light Transmission	60%	40%	35%	90%	30%	10%	30%	25%	35%	45%	16%	30%
Filter Color	Green	Orange	Pink	Clear	Brown	Brown	Green	Green	Blue	Grey	Blue	Green
Laser Type					Argon Diode Dye Excimer Nd:YAG Ti:Sapphire	Argon Alexandrite Dye Excimer Nd:YAG Ti:Sapphire	Diode Nd:YAG Er:YAG		Diode Nd:YAG Disc Fiber CO₂		Diode Nd:YAG Disc Fiber CO₂
Optical Density	OD > 3 @ 780-810 nm OD > 4 @ >810-860 nm OD > 5 @ >860-900 nm OD > 6 @ >900-940 nm OD > 7 @ >940-1070 nm OD > 6 @ >1070-1080 nm OD > 4 @ >1080-1100 nm	OD > 7 @ 180-315 nm OD > 6 @ >315-536 nm OD > 5 @ >536-538 nm OD > 4 @ >538-540 nm	OD > 5 @ 180-315 nm OD > 5 @ >315-375 nm OD > 3 @ >375-390 nm OD > 4 @ 730-<755 OD > 7 @ 755-840 nm OD > 4 @ >840-855 nm	OD > 10 @ 180-315 nm OD > 10 @ >315-384 nm OD > 8 @ >384-388 nm OD > 6 @ >388-392 nm OD > 4 @ >392-396 nm OD > 3 @ >396-400 nm OD > 5 @ >5.25-14.0 µm OD > 8 @ 10.6 µm	OD > 8 @ 180-315 nm OD > 8 @ 315-532 nm OD > 7 @ 532-534 nm OD > 6 @ 534-536 nm OD > 5 @ 536-538 nm OD > 4 @ 538-540 nm OD > 3 @ 780-810 nm OD > 4 @ 810-860 nm OD > 5 @ 860-900 nm OD > 5 @ 900-940 nm OD > 7 @ 940-1070 nm OD > 6 @ 1070-1080 nm OD > 4 @ 1080-1100 nm	OD > 10 @ 180-315 nm OD > 8 @ >315-534 nm OD > 6 @ >534-540 nm OD > 3 @ >540-545 nm OD > 1 @ 630-<660 nm OD > 2 @ 660-<680 nm OD > 3 @ 680-<700 nm OD > 4 @ 700-<715 nm OD > 5 @ 715-<725 nm OD > 6 @ 725-<735 nm OD > 7 @ 735-<745 nm OD > 8 @ 745-1120 nm OD > 7 @ >1120-1130 nm OD > 6 @ >1130-1135 nm OD > 5 @ >1135-1145 nm OD > 4 @ >1145-1155 nm OD > 3 @ >1155-1165 nm OD > 2 @ >1165-1180 nm OD > 1 @ >1180-1210 nm	OD > 9 @ 180-315 nm OD > 6 @ >315-445 nm OD > 4 @ 700-<720 nm OD > 5 @ 720-<735 nm OD > 6 @ 735-<745 nm OD > 7 @ 745-<755 nm OD > 8 @ 755-1100 nm	OD > 9 @ 180-315 nm OD > 5 @ >315-450 nm OD > 3 @ >450-460 nm OD > 1 @ 620-<650 nm OD > 2 @ 650-<680 nm OD > 3 @ 680-<690 nm OD > 4 @ 690-<700 nm OD > 5 @ 700-<720 nm OD > 6 @ 720-<755 nm OD > 7 @ 755-1090 nm	OD > 10 @ 180-315 nm OD > 8 @ >315-385 nm OD > 4 @ >385-400 nm OD > 2 @ 780-<840 nm OD > 3 @ 840-<920 nm OD > 4 @ 920-2550 nm OD > 2 @ >2.55-5.2 µm OD > 4 @ 5.2-11.5 µm	OD > 9 @ 180-315 nm OD > 4 @ 1002-<1020 nm OD > 6 @ 1020-<1030 nm OD > 7 @ 1030-1070 nm OD > 6 @ >1070-1080 nm OD > 4 @ >1080-1096 nm OD > 6 @ 9.0-11.5 µm	OD > 10 @ 180-315 nm OD > 8 @ 315-385 nm OD > 4 @ 385-400 nm OD = 1-2 @ 640-700 nm OD > 2 @ 730-770 nm OD > 3 @ 770-800 nm OD > 4 @ 800-840 nm OD > 5 @ 840-880 nm OD > 6 @ 880-960 nm OD > 7 @ 960-1030 nm OD > 8 @ 1.03-1.4 µm OD > 4 @ 1.4-3.6 µm OD > 3 @ 3.6-4.8 µm OD > 4 @ 4.8-11.5 µm	OD > 9 @ 180-315 nm OD > 6 @ >315-445 nm OD > 4 @ 705-<720 nm OD > 5 @ 720-<735 nm OD > 6 @ 735-<745 nm OD > 7 @ 745-<755 nm OD > 8 @ 755-1100 nm

Lens Material
Polycarbonate

CE
Yes

Features

Glasses Designed to Offer Complete Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve of each lens type is available for download here or on the individual product pages by clicking on a model number.
