Compare Model Drawings, CAD & Specs Configuration Flange Size Valve Actuation Availability Price
Vacuum Isolation Valve, NW16 ISO-KF, Angle Ports, Viton, Manual Knob
$350
In Stock
Angle Ports NW16 Manual Knob
In Stock
Vacuum Isolation Valve, NW16 ISO-KF, Angle Ports, Viton, Pneumatic
$350
In Stock
Angle Ports NW16 Pneumatic
In Stock
Vacuum Isolation Valve, NW25 ISO-KF, Angle Ports, Viton, Manual Knob
$385
In Stock
Angle Ports NW25 Manual Knob
In Stock
Vacuum Isolation Valve, NW25 ISO-KF, Angle Ports, Viton, Pneumatic
$385
In Stock
Angle Ports NW25 Pneumatic
In Stock

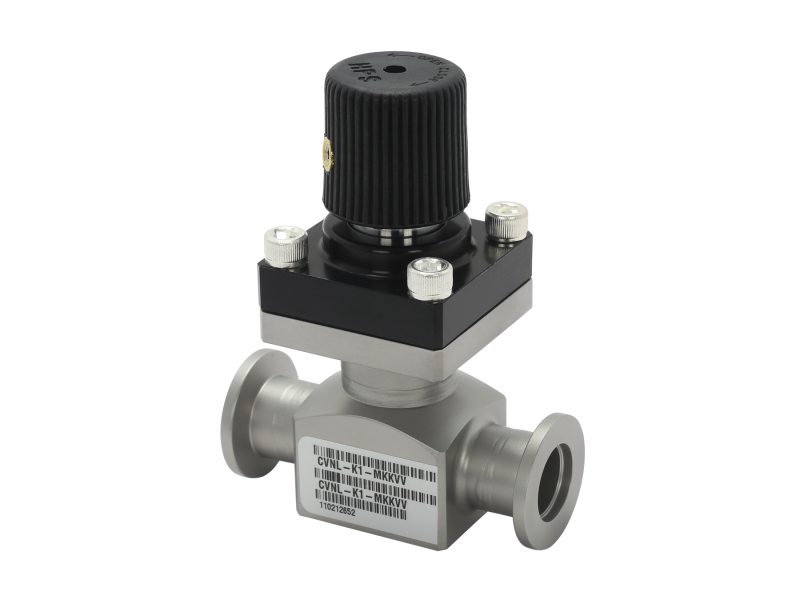

Vacuum Isolation Valve, NW16 ISO-KF, Inline Ports, Viton, Manual Knob
$395
In Stock
Inline Ports NW16 Manual Knob
In Stock
Vacuum Isolation Valve, NW16 ISO-KF, Inline Ports, Viton, Pneumatic
$395
In Stock
Inline Ports NW16 Pneumatic
In Stock
Vacuum Isolation Valve, NW25 ISO-KF, Inline Ports, Viton, Manual Knob
$410
In Stock
Inline Ports NW25 Manual Knob
In Stock
Vacuum Isolation Valve, NW25 ISO-KF, Inline Ports, Viton, Pneumatic
$410
In Stock
Inline Ports NW25 Pneumatic
In Stock

Specifications

  • Type
    Vacuum Isolation Valve
  • Orientation
    Seals against atmosphere at either port
  • Flange Type
    ISO-KF
  • Vacuum Range
    10-9 Torr to Atmosphere
  • Nose Seal Material
    Viton
  • Bonnet Seal Material
    Viton
  • Helium Leak Rate
    <1.0 X 10-9 std cc/sec
  • Limit Switch
    No
  • Operating Temperature Range
    -26° to 125°C
  • Typical Life
    1,000,000 cycles
