226A Baratron® Differential Capacitance Manometers

226a baratron 0.2-1000 torr differential capacitance manometer

Overview

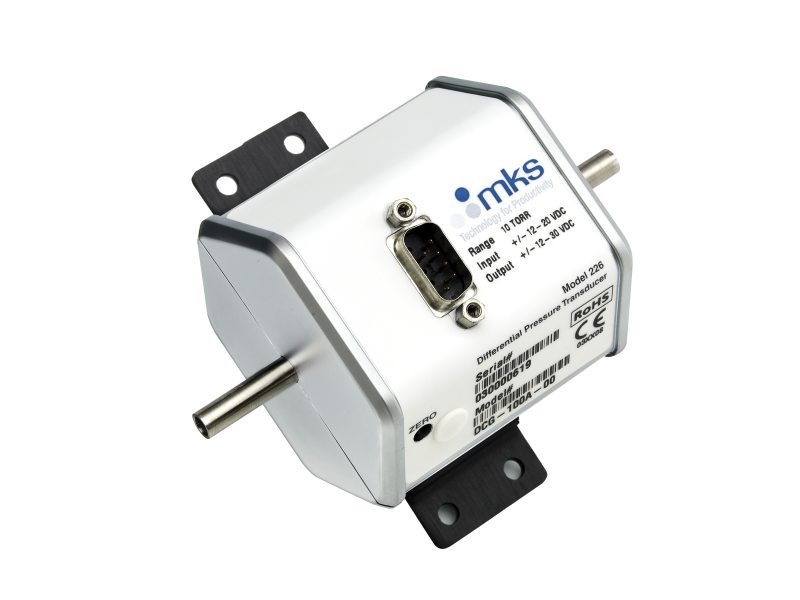

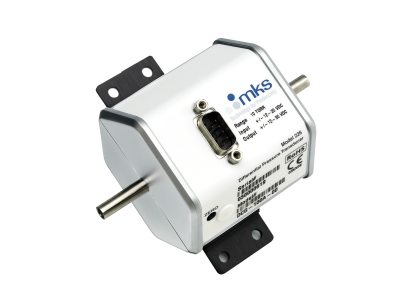

The 226A Differential Baratron® is a general-purpose differential capacitance manometer available in full-scale measurement ranges from 0.2 to 1000 Torr and can be configured with a wide variety of fittings, input/output signals, and electrical connectors. It is mounted in a rugged industrial-grade housing that minimizes external RF/EM interference on the electronics and when properly configured, is completely "drop-in" compatible with earlier Baratron® differential manometers.

Please see 226A Capacitance Manometers on mks.com for additional configurations.

Differential full scale pressure measurement from 0.2 to 1000 Torr
Fully-welded Inconel® sensor resists corrosion
Four different analog output signals for unidirectional or bidirectional calibrations
Gas composition independent pressure measurement

Specifications

Type

Pressure Transducer
Measurement Type

Differential
Power Requirements

±15 VDC
Analog Output

0 to 10 VDC

Calibration

Bidirectional
Electrical Connector

9-pin D-subminiature
Fitting Type

4 VCR female

Specifications

Type

Pressure Transducer
Measurement Type

Differential
Power Requirements

±15 VDC
Analog Output

0 to 10 VDC

Calibration

Bidirectional
Electrical Connector

9-pin D-subminiature
Fitting Type

4 VCR female
