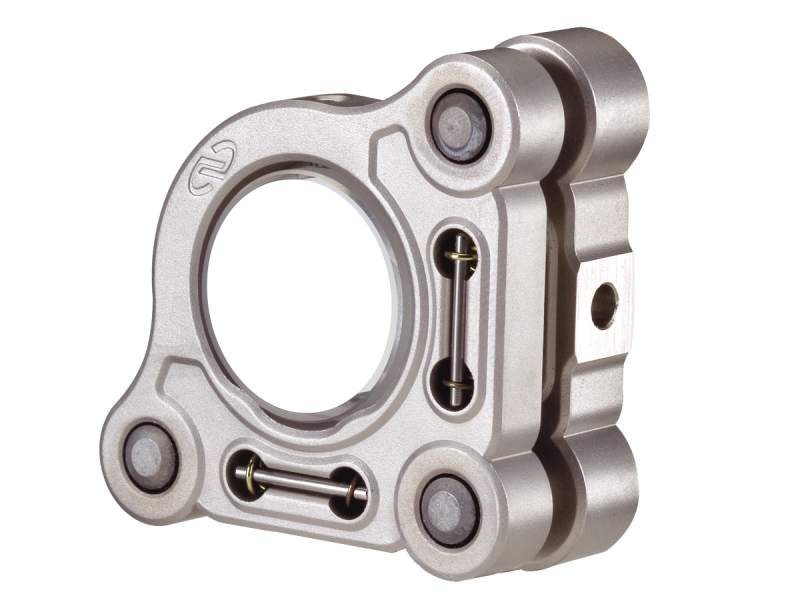

Kinematic Optic Mount, 1.0 in., Stainless Steel, Aegis Qube System

Kinematic Optic Mount, 1.0 in., Stainless Steel, Aegis Qube System

Model: Q-SS100-R3HN

$176

In Stock

Compare

Add to List

Product Series Overview

Cubic Enclosures and Mounts, Aegis Qube

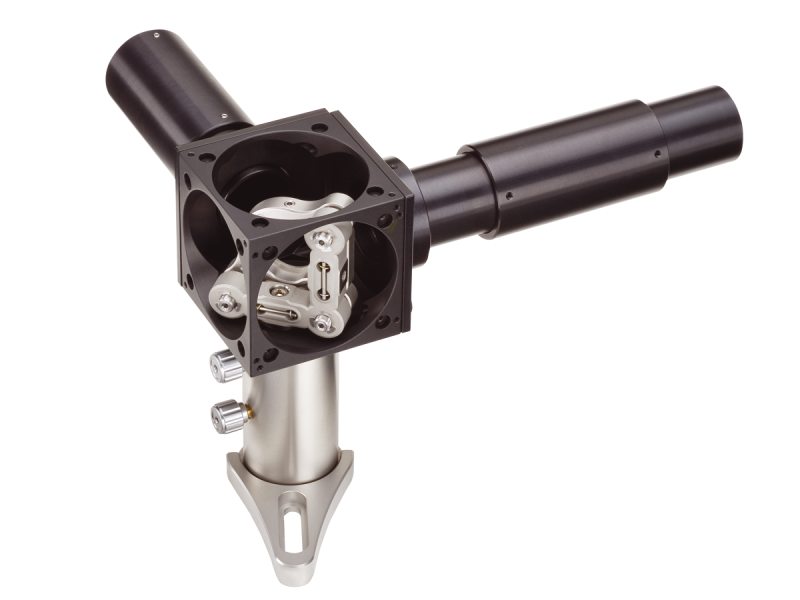

The Q-SS100-R3HN Stainless Steel Kinematic Optics Mount will mount directly into the cube. It holds 1 inch (25.4 mm) diameter mirrors or beam splitters.

Specifications

Technical Specs

Type

Kinematic Optic Mount
Optic Diameter

25.4 mm

Type

Kinematic Optic Mount
Optic Diameter

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

Aegis Q-SS100-R3HN (363.9 kB, PDF)

Other

Q-SS100-R3HN RoHS Certificate (0, PDF)
