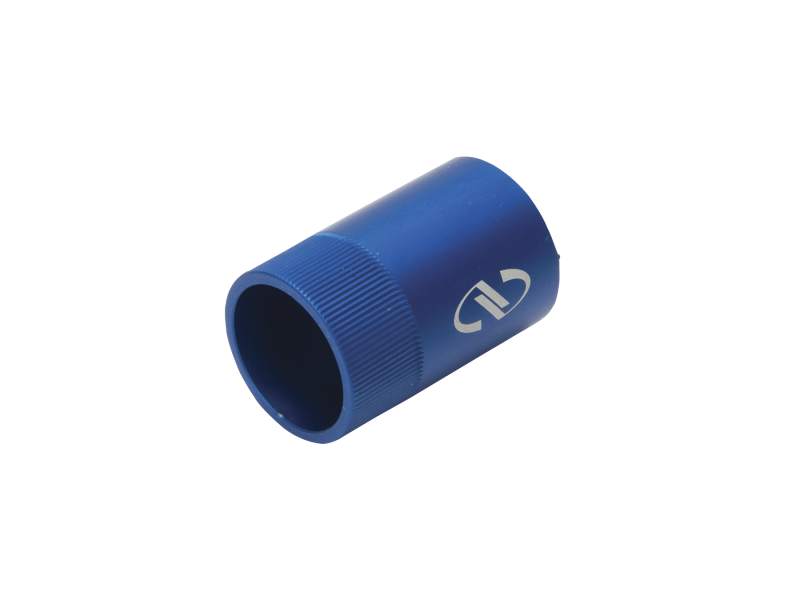

Spanner Wrench, 1 inch LT Series Lens Tubes
The LT10-WR Spanner Wrench is used for 1 inch retaining ring installation and removal. This tool is made with an extended lip to help hold the retaining ring in place and have hollow bodies so as not to obstruct the beam path during installation and adjustment. The inner diameter of the spanner wrench is extra large to allow it to work even with short focal lenght lenses with highly curved surfaces.
Resources & Downloads
Other
LT10-WR_RoHS2021.pdf(685.8 kB, PDF)
2D Product Drawings
LT-WR DWG(117 kB, PDF)
