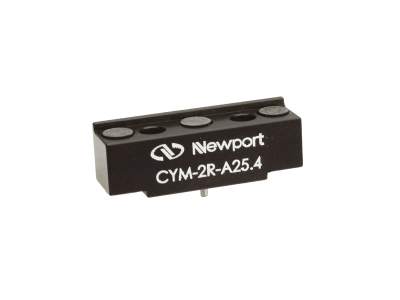

Cylindrical Lens Adapter, 25.4 mm Lens, CYM-2R Mount

adjustable cylindrical lens mounts shown with cylindrical lenses installed

Cylindrical Lens Adapter, 25.4 mm Lens, CYM-2R Mount

Model: CYM-2R-A25.4

$51

In Stock

Compare

Add to List

Product Series Overview

Adjustable Cylindrical Lens Mount

The CYM-2R-A25.4 Cylindrical Lens Adapter is for 1 inch (25.4 mm) diameter cylindrical lenses. It places the center of the cylindrical lens at the CYM-2R's axis of rotation and has a location pin for quick installation.

Specifications

Technical Specs

Type

Cylindrical Lens Mount
Optic Diameter

25.4 mm
Use

CYM-2R Cylindrical Lens Mount

Maximum Height

25.4 mm
Maximum Width

50.8 mm

Type

Cylindrical Lens Mount
Optic Diameter

25.4 mm
Use

CYM-2R Cylindrical Lens Mount

Maximum Height

25.4 mm
Maximum Width

50.8 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

CYM-2R-A25.4 (333.6 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
PS-3 Optical Pedestal, 3.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	In Stock	$34
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
Q-TMS-2 Optical Post Holder, 2.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork	UNIVERSAL	In Stock	$60

Similar

Description	Compatibility	Avail.	Price
CYM-2R-A6.35 Cylindrical Lens Adapter, 6.35 mm Lens, CYM-2R Mount	UNIVERSAL	In Stock	$51
CYM-2R-A19.0 Cylindrical Lens Adapter, 19.0 mm Lens, CYM-2R Mount	UNIVERSAL	In Stock	$51
CYM-2R-A12.7 Cylindrical Lens Adapter, 12.7 mm Lens, CYM-2R Mount	UNIVERSAL	In Stock	$51
CYM-2R Cylindrical Lens Mount, Adjustable, 50.8 mm Max, +/- 5 Deg., 2 arcs sec	UNIVERSAL	In Stock	$205
CYH-2 Cylindrical Lens Holder, 2.0 in. x 0.75-1.0 in., 2.063-20 Threaded Mounts	UNIVERSAL	In Stock	$264
